paper,leather and plastic hot press gold hot foil stamping machine, napkin paper hot stamping machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Heat Press Machine | Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Advertising Company |
|---|---|---|---|
| Condition: | New | Plate Type: | Flatbed Printer |
| Place Of Origin: | Zhejiang, China | Brand Name: | T&D |
| Model Number: | GP-210 | Usage: | Other |
| Automatic Grade: | Semi-automatic | Color & Page: | Single Color |
| Voltage: | 220v | Dimensions(L*W*H): | 570mm*460mm*1320mm |
| Weight: | 90 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Gear, Bearing, Gearbox, Engine | Driven Type: | Pneumatic |
| Stamping Size: | 210*260mm | Power: | 2kw |
Product Description

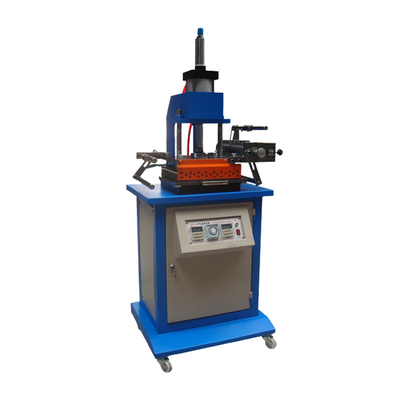

Pneumatic Hot Stamping Machine | ||
Low pressure suit for small size hot stamping | ||
Automatic foil feeding | ||
Pneumatic | ||

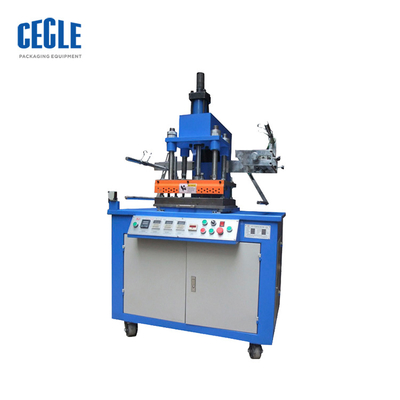

Hydraulic Hot Stamping Machine | ||
High pressure suit for big size hot stamping | ||
Automatic foil feeding | ||
Hydraulic | ||
Photocell protection | ||
embossing and relief effect | ||

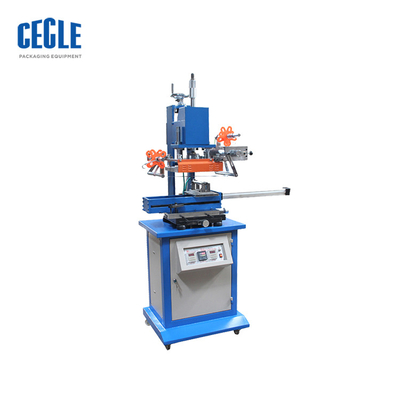

Round and Flat Hot Stamping Machine | ||
Round and Flat hot stamping | ||
Automatic foil feeding | ||
Pneumatic | ||
Worktable fine adjustment | ||
Stroke adjustment | ||
Shopping bag Hot Stamping Machine | ||
Design for Shopping bag and box hot stamping | ||
Heating plate: 400*250mm / 15.7" * 9.8" | ||
Fast hot stamping die change | ||
Two hand press starting | ||

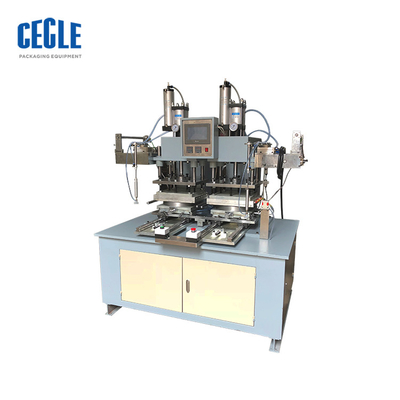

Plate Hot Stamping Machine | ||
Double-station design | ||
Design for Plate hot stamping | ||
Automatic foil feeding | ||
Automatic plate Popping | ||
Automatic slide worktable | ||
Ribbon Hot Stamping Machine | ||
Design for ribbon hot stamping | ||
Automatic ribbon hot stamping | ||
Standard machine print one ribbon | ||
Two ribbon or more contact us for customization | ||
Zipper Hot Stamping Machine | ||
Design for Zipper hot stamping | ||
Automatic Zipper hot stamping | ||
Strand machine print one zipper | ||
Two zipper or more contact us for customization | ||
Hot Stamping Machine With Cutting | ||
Design for roller products like wallpaper | ||
Automatic hot stamping and cutting | ||
pneumatic or hydraulic | ||
Model: | GP-180 | GP-210 | GP-300 | GP-350 | |||
Heating plate size : | 140mm*180mm/5.5"*7" | 210mm*260mm/8.2"*10.2" | 300mm*400mm/11.8"*15.7'' | 350mm*500mm/13.7"*19.6" | |||
Max. pressure: | 0.24T | 0.24T | 0.68T | 1T | |||
Speed: | 10-20 times/min | ||||||
Power: | 2kw | 3kw | 4kw | ||||
Voltage: | 220v 50~60hz single phase | ||||||
Control mode: | Pneumatic and Electric | ||||||
Hot stamping products: | Flat Products | ||||||
G.W./N.W: | 60kg/132.2lb | 90kg/198.4lb | 240kg/529.1lb | 335kg/738.5lb | |||
Packaging dimension: | 520*420*1250mm/20.4"*16.5"*49.2" | 570*460*1320mm/22.4"*18.1"*51.9" | 860*520*1560mm/33.8"*20.4"*61.4" | 950*620*1610mm/37.4"*24.4"*63.3" | |||
Model: | HGP-300 | GP-210 | HGP-350 | GP-350 | |||
Heating plate size : | 300mm*400mm/11.8"*15.7'' | 210mm*260mm/8.2"*10.2" | 350mm*500mm/13.7"*19.6" | 350mm*500mm/13.7"*19.6" | |||
Max. pressure: | 3T | 15T | |||||
Speed: | 10-20 times/min | ||||||
Power: | 3kw | 2kw | 6kw | ||||
Voltage: | 220v/380v 50~60hz | ||||||
Control mode: | Hydraulic and Electric | ||||||
Hot stamping products: | Flat Products | ||||||
G.W./N.W: | 400kg/881.3lb | 90kg/198.4lb | 500kg/1101.7lb | 335kg/738.5lb | |||
Packaging dimension: | 1100*820*1760mm/43.3"*32.3"*69.3" | 570*460*1320mm/22.4"*18.1"*51.9" | 1270*930*2030mm/50"*36.6"*79.9" | 950*620*1610mm/37.4"*24.4"*63.3" | |||
Detailed Images
Our Company
Certifications
Our Business
FQA
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
